How to Use a Multimeter for Beginners: Test Voltage, Continuity & Resistance
Difficulty: BeginnerWhy This Guide Exists
A multimeter is the single most useful tool for any repair — electrical, automotive, or appliance. It tells you if a battery is dead, a fuse is blown, a wire is broken, or an outlet is live. This guide teaches you the three tests you'll use 95% of the time: voltage, continuity, and resistance. No electrical background needed. By the end, you'll diagnose problems that stump most people.
🛠️ What You Need
- Digital multimeter (auto-ranging preferred)
- Fresh 9V battery for the meter
- Something to test (car battery, fuse, outlet)
- 5 minutes of patience
Household voltage can kill. Never touch metal probes while testing live circuits. Keep fingers on the plastic handles only. If you're nervous, practice on a dead car battery first.
Know Your Multimeter
Every digital multimeter has the same basic parts, no matter the brand:
The dial: This selects what you're measuring. The three settings you need:
• V⎓ (DC voltage): For batteries, cars, ATVs, electronics
• V∿ (AC voltage): For wall outlets, household wiring
• Ω (ohms/resistance): For testing fuses, wires, heating elements
• ))) (continuity): Beeps when two points connect (best for finding breaks)
The ports: Three holes at the bottom:
• COM (black): Common/ground — your black probe always goes here
• VΩmA (red): Voltage, resistance, and milliamps — red probe here for 99% of tests
• 10A (red): High current — only for measuring amps, rarely needed
The display: Shows numbers. "OL" or "1" means "overload" — the reading is too high for the selected range or there's no connection.
Test DC Voltage (Car Batteries, ATVs, Electronics)
This is the test you'll use most. It tells you if a battery is good, if a power supply is working, or if a wire has voltage.
Setup:
1. Turn dial to V⎓ (DC voltage)
2. If your meter isn't auto-ranging, select 20V
3. Black probe in COM port
4. Red probe in VΩmA port
Test a car battery:
1. Touch red probe to positive terminal (+)
2. Touch black probe to negative terminal (-)
3. Read the display
What the numbers mean:
• 12.6V+ = Fully charged, good battery
• 12.4V = 75% charged — okay but getting low
• 12.2V = 50% charged — needs charging soon
• 12.0V or less = Dead or dying — charge or replace
• 10.5V or less = Deep discharged — probably damaged
Test under load: Have someone crank the engine while you watch the meter. Voltage should stay above 9.6V. If it drops to 8V or less, the battery is toast.
Pro tip: Test battery voltage after the vehicle has sat overnight. Testing right after driving gives a false high reading (surface charge). A resting battery tells the truth.
Test AC Voltage (Wall Outlets, Household Wiring)
Before you replace an outlet or switch, confirm it has power. This test also checks if a breaker is actually sending voltage.
Setup:
1. Turn dial to V∿ (AC voltage)
2. Select 200V or 750V range (household is 120V)
3. Black probe in COM, red in VΩmA
Test a wall outlet:
1. Insert red probe into the smaller slot (hot)
2. Insert black probe into the larger slot (neutral)
3. You should read 110-125V
Test the ground:
1. Red probe in hot (small slot)
2. Black probe in ground (round hole)
3. Should also read 110-125V
4. If not, the outlet isn't grounded — safety hazard
Test a light switch:
1. Remove the cover plate
2. Touch red probe to either screw on the switch
3. Touch black probe to the metal box (ground)
4. Flip the switch — one screw should always have voltage, the other only when switch is on
Never touch metal while testing live outlets. Hold the probes by the plastic handles only. If you're not confident, turn off the breaker and use a non-contact voltage tester first.
Test Continuity (Find Broken Wires, Blown Fuses, Bad Switches)
Continuity means "is there a complete path?" The meter beeps if electricity can flow from one probe to the other. No beep = broken circuit.
Setup:
1. Turn dial to continuity ())) symbol
2. Some meters combine this with resistance (Ω) — look for the sound wave symbol
3. Black probe in COM, red in VΩmA
Test a fuse:
1. Remove the fuse from the vehicle/appliance
2. Touch one probe to each metal end of the fuse
3. Beep = good fuse. No beep = blown fuse. Simple.
Test a wire:
1. Disconnect both ends of the wire
2. Touch one probe to each end
3. Beep = wire is intact. No beep = wire is broken somewhere inside the insulation
Test a switch:
1. Disconnect the switch
2. Touch probes to the switch terminals
3. Flip the switch — should beep in one position, silent in the other
4. If it beeps (or doesn't beep) in both positions, the switch is bad
Pro tip: Continuity tests only work on DEAD circuits. Remove the battery, unplug the device, or turn off the breaker. Testing continuity on a live circuit will damage your meter.
Test Resistance (Ohms) — Heating Elements, Sensors, Spark Plugs
Resistance tells you if a component is within spec. Every electrical part has a designed resistance range. Too high or too low = replacement needed.
Setup:
1. Turn dial to Ω (ohms)
2. Auto-ranging meters pick the scale automatically
3. Manual meters: start at the highest range and work down
4. Black probe in COM, red in VΩmA
Test a dryer heating element:
1. Disconnect the element
2. Touch probes to the element terminals
3. Should read 5-15 ohms (check your dryer's spec)
4. "OL" or infinity = broken coil, replace element
Test a spark plug:
1. Remove the plug
2. Touch one probe to the center electrode, one to the metal threads
3. Should read 5,000-15,000 ohms (5K-15K)
4. Much higher = cracked insulator. Much lower = shorted internally
Test a coolant temperature sensor:
1. Remove sensor from engine
2. At room temperature (70°F), should read 2,000-3,000 ohms
3. Put sensor in hot water — resistance should drop as temperature rises
4. No change = sensor is dead
Common Mistakes Beginners Make
Mistake 1: Testing resistance on a live circuit.
You'll get nonsense readings and might fry the meter. Always disconnect power first.
Mistake 2: Wrong probe ports.
Putting the red probe in the 10A port for voltage tests gives wrong readings. COM and VΩmA are your defaults.
Mistake 3: Not making good contact.
Rust, paint, or grease on battery terminals gives false low readings. Scrape to bare metal first.
Mistake 4: Confusing AC and DC.
Testing a car battery on AC setting shows 0V. Testing a wall outlet on DC setting also shows 0V. Match the dial to the power source.
Mistake 5: Ignoring "OL" readings.
"OL" means overload OR open line (no connection). In continuity mode it means "broken." In resistance mode it means "infinite resistance." Both mean "replace the part."

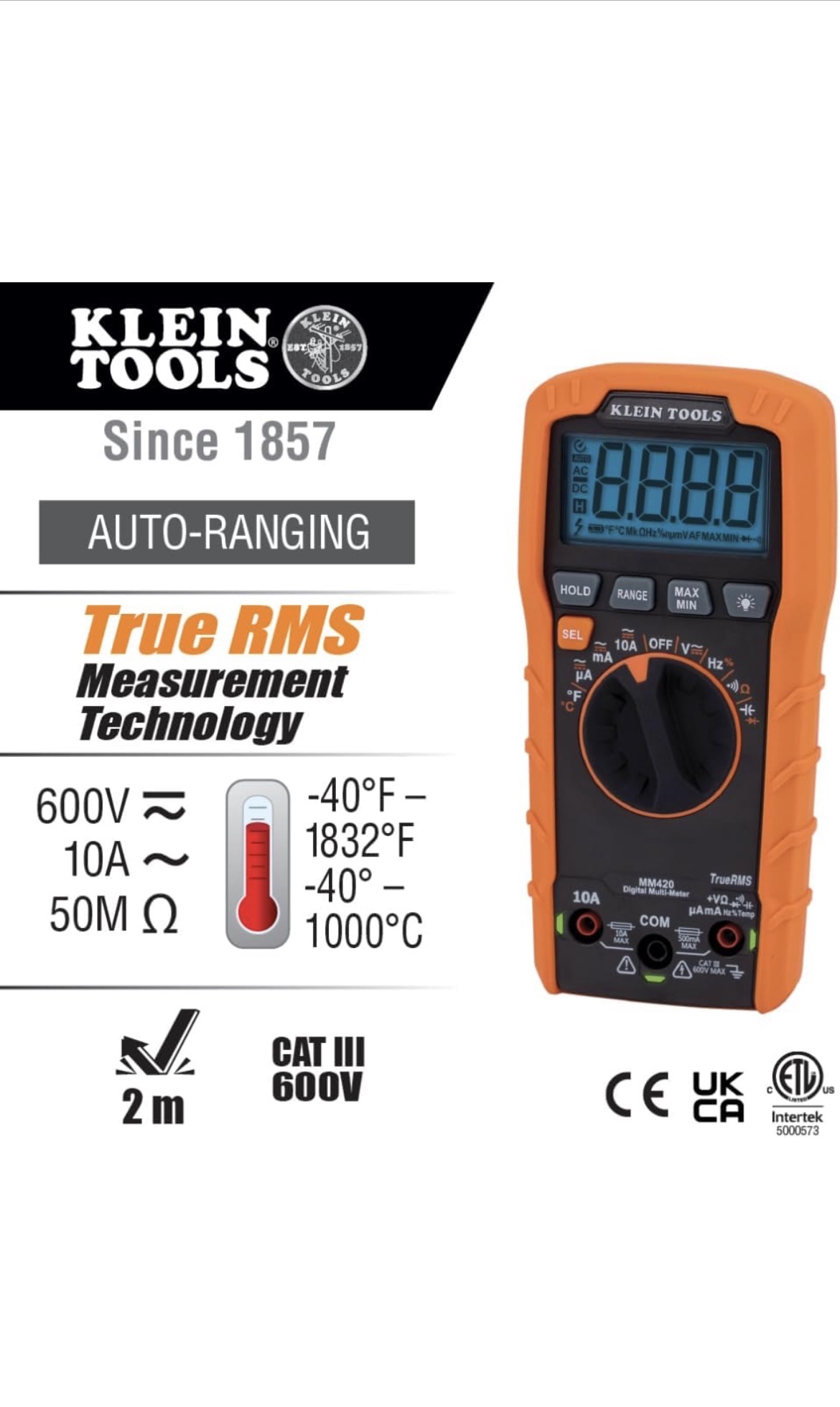

Our Pick: Klein MM420 Auto-Ranging Multimeter
Auto-ranging (no dial guessing), backlit display, tests everything in this guide. The same meter we use for ATV electrical, dryer repair, and home wiring checks. Tough enough for the shop, simple enough for beginners.
Frequently Asked Questions
What's the difference between a $20 multimeter and a $100 one?
Accuracy, safety ratings, and features. A $20 meter is fine for car batteries and continuity. A $50+ meter has true RMS (accurate on AC), higher safety ratings (CAT III for household), and better probes. For home use, $40-60 is the sweet spot.
Can I test a car alternator with a multimeter?
Yes. With the engine running, battery voltage should read 13.5-14.5V. Below 13V means the alternator isn't charging. Above 15V means the voltage regulator is bad and will cook your battery.
My multimeter shows negative voltage. Is it broken?
No — you reversed the probes. Red is positive, black is negative. Swap them and the reading goes positive. Negative voltage won't hurt the meter, but it confuses beginners.
How do I test if my house ground is working?
Set meter to AC voltage. Test from hot (small slot) to ground (round hole). Should read 110-125V — same as hot-to-neutral. If hot-to-ground reads 0V, your ground wire is disconnected. Call an electrician — this is a safety issue.
Can a multimeter test a battery that's installed?
Yes — that's the normal way. Touch probes to the battery terminals while it's connected. For the most accurate test, check voltage after the car has sat overnight (resting voltage). Testing right after driving gives a falsely high reading.
